Factory mod of the FT100 for High SWR

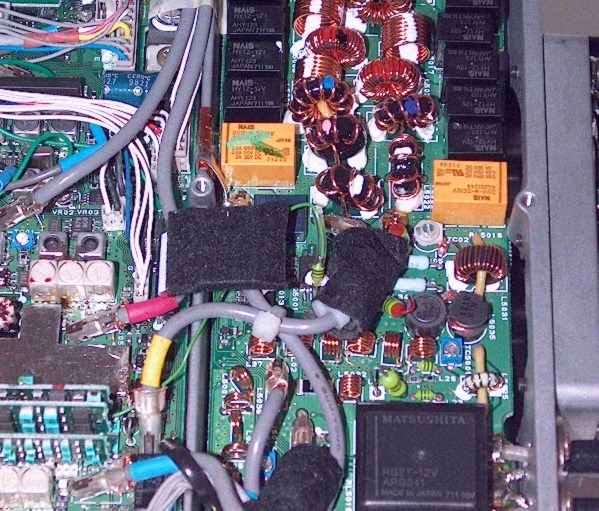

Photo below is prior to Factory Mod

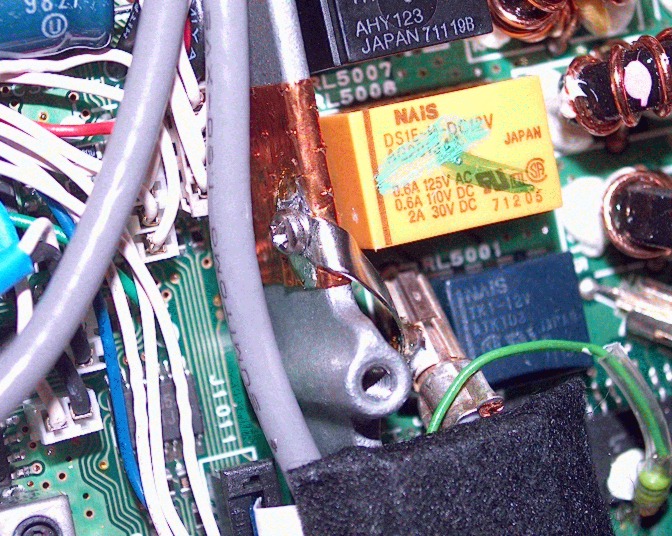

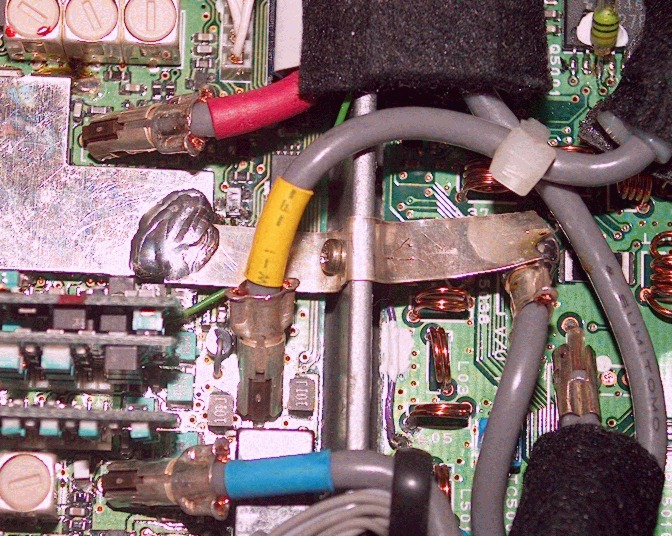

Photos below are after factory mod

These pictures were taken by a friend before and after he sent his radio into Yaesu for the High SWR mod. The first picture was taken prior to the mod and the next two close ups were taken after the radio was returned. Note that on the upper strap, they have added a screw and the lower strap was added and soldered to the shield as well as the coax and also screwed to the casting.
