Internal view of the HP Media Vault with the side/bottom cover removed.

Photos taken by Raymond Day.

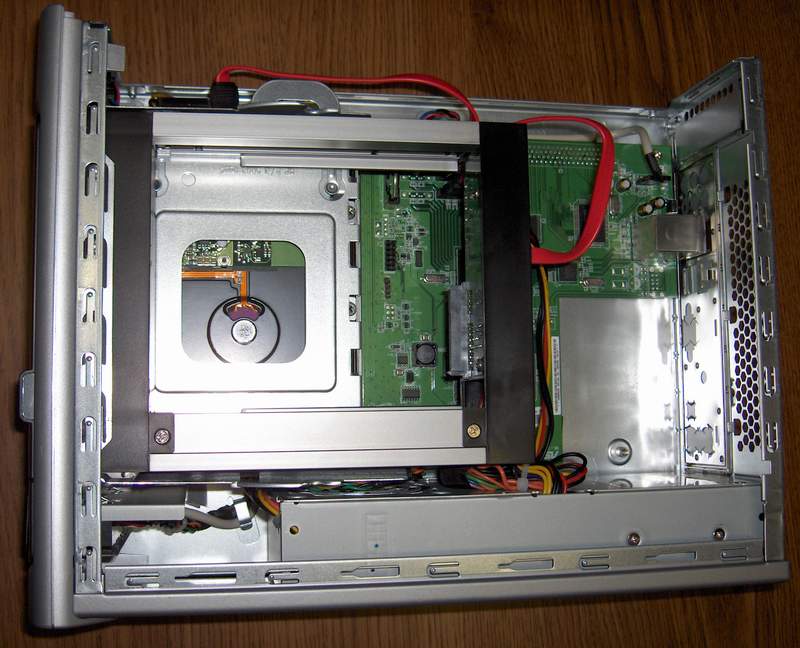

From the bottom.  Internal hard drive, mobile rack, motherboard.

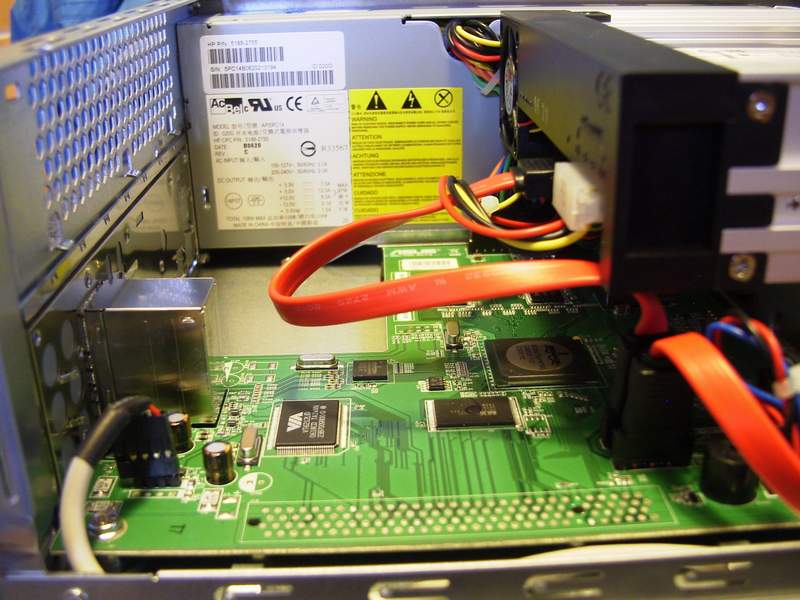

Close up of the back of the mobile rack, motherboard, and power supply.

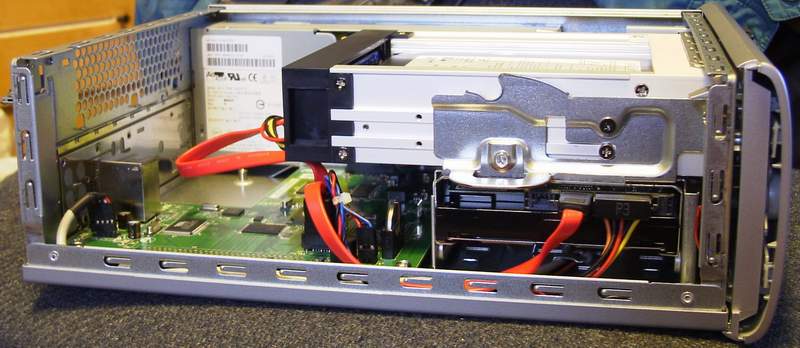

View the the back looking into the bottom of the HP Media Vault.

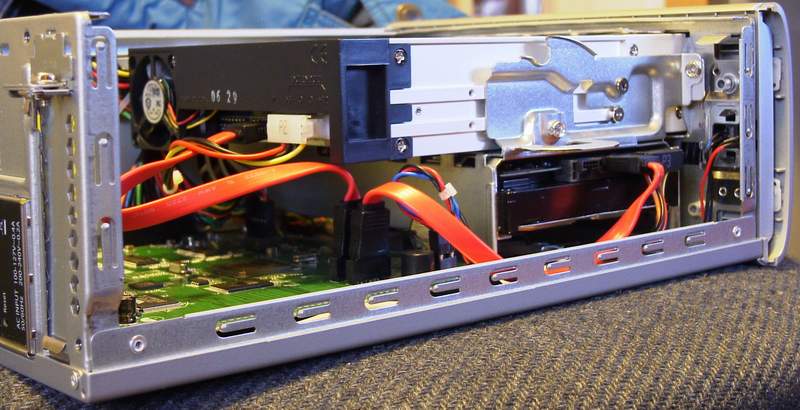

View with mobile rack drive caddy removed.

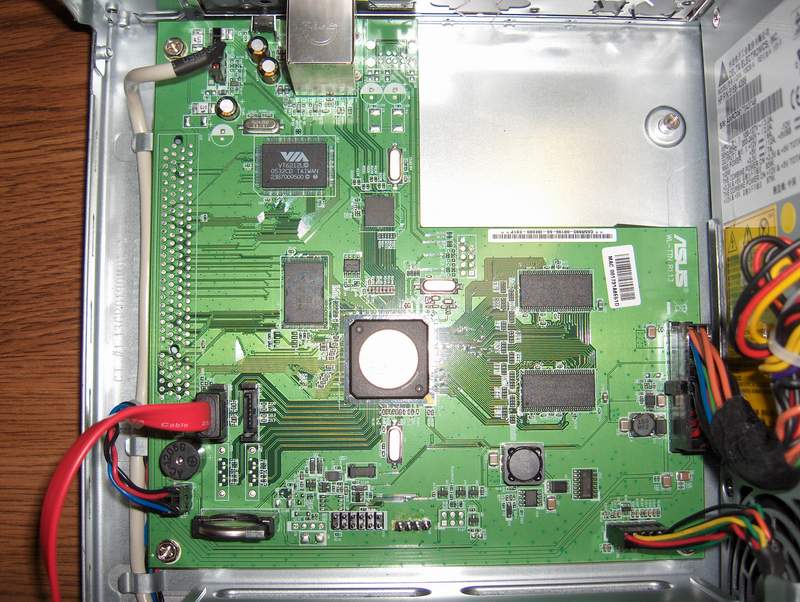

View of motherboard.  Mobile rack removed.
